Fitment Information

• VW Golf TDI 2.0l L4 CJAA Hatchback FWD (2010, 2011, 2012, 2013, 2014)

Specs & Features

• Lowering Range:
  • Front: 1.4-2.6" / 35-65mm
  • Rear: 1.4-2.6" / 35-65mm
• Spring Rates:
• Front: Progressive
• Rear: Progressive

• Includes a full set of 4 adjustable coilovers
• 18 Distinct clicks of Adjustable Rebound Damping
• Individual lowering within the tested adjustment range
• Front and rear axle thread adjustment (when possible)
• Galvanized coilover struts with additional coating for optimized corrosion protection
• Complete solution with adjustable spring perch, multi-coated spring system and dynamic elastomer bump stops with dust protection
• Powerful twin-tube dampers with high-quality components for maximum longevity
• Backed by ST suspension's 5 Year Unlimited Mileage Warranty


Product Description

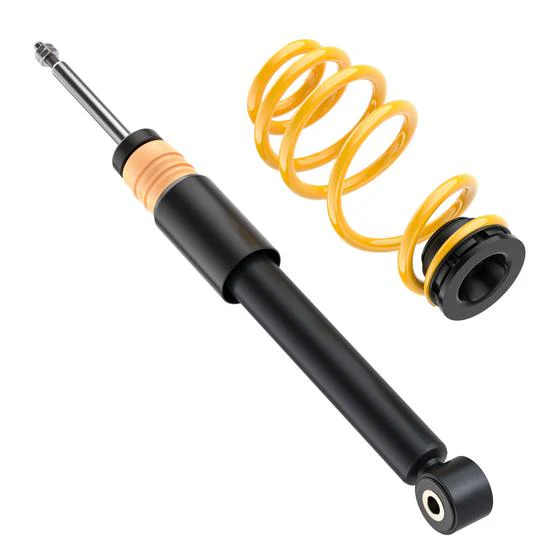

For drivers wanting more than just ride height adjustment we offer the ST XA coilover. Developed by KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with more track stability and reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable on the move. Any vehicle fitted with ST XA coilovers will behave much more agile and sporty compared to stock.

With all ST coilovers the lowering adjustment is made via a continuously threaded strut housing on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring perch higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the types of suspension construction.

The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a monoblock guide and multi-lip sealing package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity.
